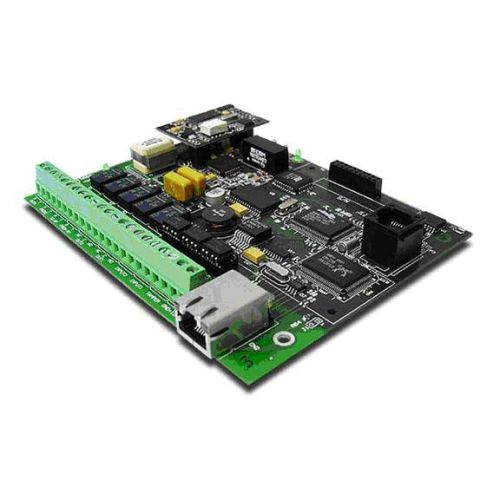

The SK-IP-2 and SK-IP-2UD are kits that include both the IP communicator and the external mounting enclosure. The SK-IP-2UD adds a modem daughter board that allows for remote IP access for up/downloading of the IntelliKnight® 5820XL and 5808 addressable FACPs. This UL listed IP communicator works over any type of customer-provided Ethernet 10/100 Base network connection eliminating the cost of two dedicated phone lines. The IP Communicator is always on, increasing the security and supervision of the central station connection from once every 24 hours for a test signal to once every 30 – 90 seconds. More importantly, alarm transmission time is decreased to less than 10 seconds.
More Information
Manufacturer Part Number
SK-IP-2UD
Features
• Listed to UL Standard 864. • Eliminates the cost of two dedicated phone lines. Only the customer’s shared IP equipment is required. • Can use newer low-cost, non-analog, digital telephone services such as cable or fiber optics. • Increases connection supervision to the central station from the once-a-day test signal to once every 30 - 90 seconds. • Requires no change to the existing panel configuration. The IP Communicator connects directly to the primary and secondary analog panel telephone ports. • Fast alarm transmission (less than 10 second transmission time). • Works over any type of customer-provided Ethernet 10/100 Base network connection (LAN or WAN), DSL modem or cable modem. • Data transmits over standard contact-ID protocol but is secured with the industry’s highest level of encryption (AES 512 bit). • Supports both dynamic (DHCP) or Public and Private Static IP addressing. • Supports dual-destination IP receiver address for high redundancy configurations: all signals are sent to a secondary address should the primary become unavailable. • User programmable UDP ports for flexibility and compatibility with firewalls and other network security components. • Supports an optional third maintenance receiver installed at the end user’s facility that permits local alarm monitoring. Alarms are received simultaneously at both the central station and the customer’s facility. A filter can be applied to annunciate specific alarm types such as trouble-only events. • Supports upload/download using existing, familiar programming tools. • Two supervised inputs and two outputs • RJ45X Ethernet Termination
