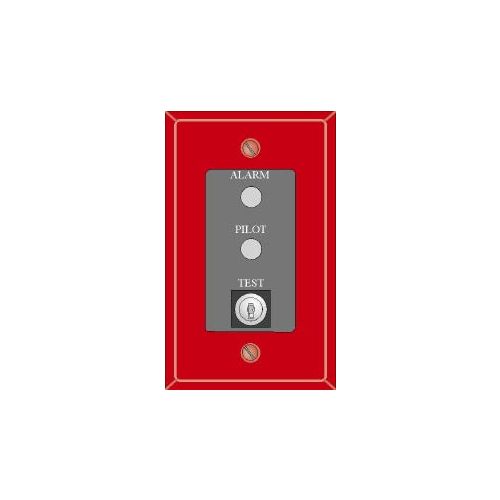

Silent Knight SD505-DTS-K Remote Test Switch **In Stock**
The SD505-DUCTR Addressable duct smoke detector provides early detection of smoke and products of combustion present in air moving through an HVAC duct to prevent re-circulation of smoke into the air handling system. The SD505-DUCTR is a heavy duty metal housing with a pre-installed SD505-APS Analog Photo Electric Smoke Sensor and relay module. When smoke is detected in a duct, the unit communicates the condition to the IntelliKnight FACP. The built-in relay module, in turn, turns off fans, blowers, and other devices. The SD505-DTS-K is a remote switch that is used with the SD505-DUCTR so you can remote test the Duct Detector. It also provides LED indication of the status of the SD505-DUCTR. The SD505-DTS-K uses the same key as the control panel.
| Manufacturer Part Number | SD505-DTS-K |
|---|---|
| Features | • Two-wire connection to SLC |
• Two-wire connection to SLC
• Detects and limits spread of smoke
• LED alarm indication and
communication on sensor head
• Rugged steel backbox with clear
plastic cover
• Installation template included
• No screens or filters to clean
• SD505-APS Photoelectric Smoke
Detector pre-installed
• 3 standard tube lengths
• UL listed, complies with NFPA 72
and 101
• CSFM listed
• MEA Approved 429-92-E, Vol 9
• FM Approved
