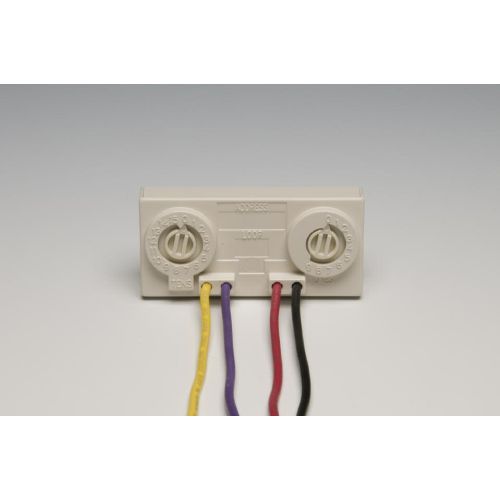

Silent Knight SK-MINIMON Intelligent Mini Monitor Module
The SK-MINIMON is an addressable monitor modules for use with the Honeywell Silent Knight fire alarm control panels (FACPs). The SKMINIMON acts as an interface to contact devices, such as waterflow switches and pull stations. The SK-MINIMON supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions The SK-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
| Manufacturer Part Number | SK-MINIMON |
|---|---|
| Features | PHYSICAL Dimensions: 2.75” W x 1.3" H x 0.5" D Weight: 1.2 oz (37 g) ELECTRICAL Operating Voltage: 15 – 32VDC SLC Standby and Alarm Current: 350 μA End-of-Line Resistance: 47K W Initiating device circuit wiring resistance: 1,500W max SLC loop resistance: 40W max Wire Length: 6” min. ENVIRONMENTAL Operating Temperature: 32ºF – 120ºF (0ºC – 49ºC) Humidity: 10% – 93% non-condensing COMPATIBILITY The SK-MINIMON is compatible with the following Honeywell Silent Knight fire alarm control panels: 6820: Addressable fire alarm control panel 6820EVS: Addressable fire alarm control panel with an emergency voice system. 6808: Addressable fire alarm control panel 6700: Addressable fire alarm control panel 5700: Addressable fire alarm control panel 5808: Addressable fire alarm control panel 5820XL: Addressable fire alarm control panel 5820XL-EVS: Addressable fire alarm control panel with an emergency voice system |
PHYSICAL
Dimensions: 2.75” W x 1.3" H x 0.5" D
Weight: 1.2 oz (37 g)
ELECTRICAL
Operating Voltage: 15 – 32VDC
SLC Standby and Alarm Current: 350 μA
End-of-Line Resistance: 47K W
Initiating device circuit wiring resistance: 1,500W
max
SLC loop resistance: 40W max
Wire Length: 6” min.
ENVIRONMENTAL
Operating Temperature: 32ºF – 120ºF (0ºC –
49ºC)
Humidity: 10% – 93% non-condensing
COMPATIBILITY
The SK-MINIMON is compatible with the
following Honeywell Silent Knight fire alarm
control panels:
6820: Addressable fire alarm control panel
6820EVS: Addressable fire alarm control panel
with an emergency voice system.
6808: Addressable fire alarm control panel
6700: Addressable fire alarm control panel
5700: Addressable fire alarm control panel
5808: Addressable fire alarm control panel
5820XL: Addressable fire alarm control panel
5820XL-EVS: Addressable fire alarm control panel
with an emergency voice system
