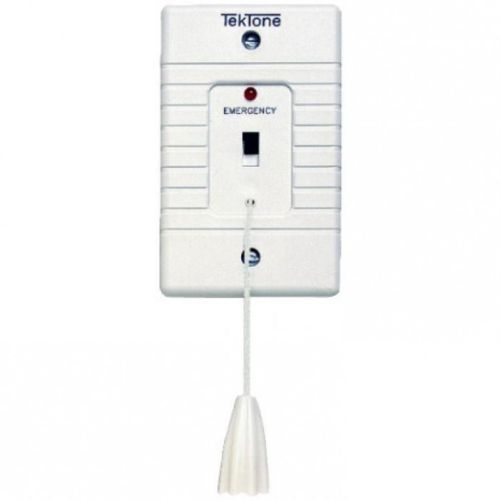

The SF118C Emergency Switch is available in two models. The SF118/2C provides two contacts, one to signal a dome light and master station, and one to signal a buzzer or DC bell. The SF118/4C provides two additional contacts that may be used to operate additional signaling devices as needed. Both models feature a rugged, long-life, positive-acting switch mounted on an attractive, flame retardant (UL® 94V-0) plastic faceplate marked emergency that includes a red LED. Signaling an emergency requires just a short pull in any direction on the 6′ long nylon cord. The signal cannot be canceled except at the point of origin.
More Information
Manufacturer Part Number
SF118/2C
Features
Specifications Dimensions:
Height: 4.5" (114 mm)
Width: 2.75" (70 mm)
Depth: 1.5" (38 mm)
Switch: SF118/2C: 2 PDT SF118/4C: 4 PDT
Construction: Switch and lamp are mounted to an attractive, flame retardant (UL® 94V-0) plastic faceplate.
Call-Placed Light: Red LED.
Connections: Wire leads.
Mounting: Standard single-gang electrical box
