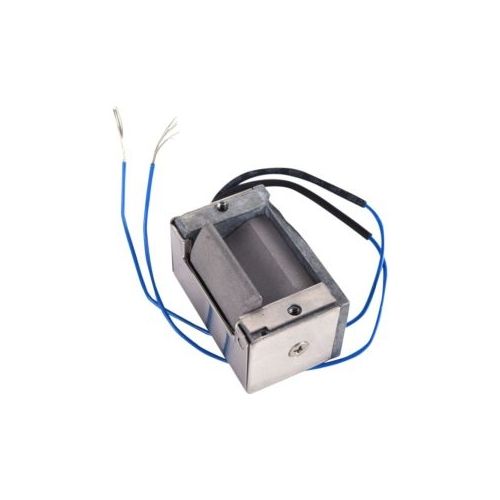

Trine 3012 Electric Strike
The 3000 Series Electric strike. The smallest strike in the world. Grade 1 sereies electric strike with over 500,000 life cycles with solid steel stainless steel latch. Fail secure is standard fail safe is optional.
| Manufacturer Part Number | 3012 |
|---|---|
| Features | Fail secure - standard action (unlocks with power) Intermittent Duty Included spacers increase cavity depth up to 1/8" GRADE 1 500,000 + life cycles 1,500 + lbs. holding force (1,200 lbs. for 334) Dynamic Force 70 ft/lb. Solid stainless steel latch and in the device body. Accepts a bolt with a up to 5/8" throw Non-handed Unit voltage: 12DC Specifications: BHMA - A156.31, 2001 BHMA Grade 1 - All models (except 334) BHMA Grade 2 - 334 |
Fail secure - standard action (unlocks with power)
Intermittent Duty
Included spacers increase cavity depth up to 1/8"
GRADE 1
500,000 + life cycles
1,500 + lbs. holding force (1,200 lbs. for 334)
Dynamic Force 70 ft/lb.
Solid stainless steel latch and in the device body.
Accepts a bolt with a up to 5/8" throw
Non-handed Unit
voltage: 12DC
Specifications:
BHMA - A156.31, 2001
BHMA Grade 1 - All models (except 334)
BHMA Grade 2 - 334
