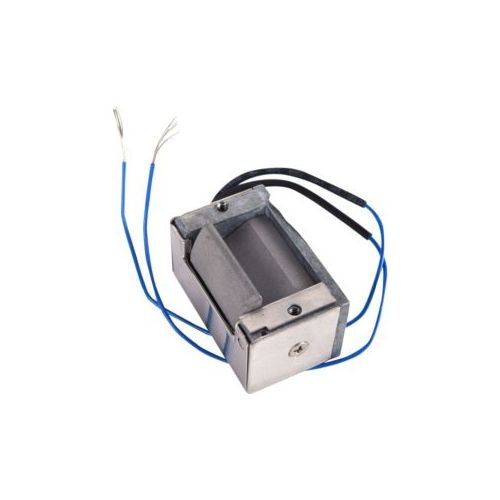

The 3000 Series Electric strike. The smallest strike in the world. Grade 1 sereies electric strike with over 500,000 life cycles with solid steel stainless steel latch. Fail secure is standard fail safe is optional.
More Information
Manufacturer Part Number
3012
Features
Fail secure - standard action (unlocks with power)
Intermittent Duty
Included spacers increase cavity depth up to 1/8"
GRADE 1
500,000 + life cycles
1,500 + lbs. holding force (1,200 lbs. for 334)
Dynamic Force 70 ft/lb.
Solid stainless steel latch and in the device body.
Accepts a bolt with a up to 5/8" throw
Non-handed Unit
voltage: 12DC
Specifications:
BHMA - A156.31, 2001
BHMA Grade 1 - All models (except 334)
BHMA Grade 2 - 334
