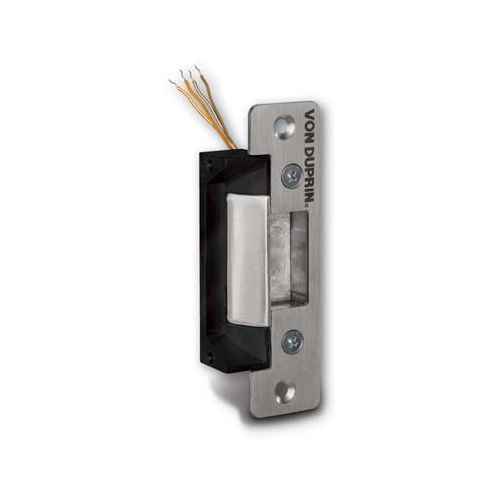

The 4200 Series electric strikes are easy to order, configure in the field and install. This
makes it a great choice for commercial applications where traffic control is the primary
function.
Compatible with a wide range of cylindrical devices, the 4200 series makes electrifying
an opening simple. It is designed and tested to work with all Schlage and Falcon
cylindrical locks as well as those of many other manufacturers’.
With a variety of field configurable options, the 4200 series is able to address a
broad range of needs. The power failure mode (fail safe or fail secure) can be changed
in the field without disassembling the strike. The 4200 series also features a 12/24
dual-voltage solenoid for field wiring of either input voltage.
Additional factory orderable options provide even greater flexibility. The 4200 series can
be ordered with or without latchbolt monitor. An entry buzzer and rectifier kits are also
available.
The 4200 was developed with Von Duprin’s high standards and engineering expertise.
Its heavy duty stainless steel construction is designed to withstand abuse.
Features and Benefits
§ Field configurable 12/24 voltage utilizing dual-voltage internal solenoid
§ Field configurable power failure mode (fail-safe/fail-secure)
§ Non-handed, internal solenoid design
§ Heavy duty stainless steel faceplate
§ Latchbolt monitoring standard on 4212 only
§ Optional entry buzzer and rectifier kits available for AC to DC operation
§ 1 year electrical product warrant
Lockset compatibility
The 4200 series is compatible with all Schlage and Falcon cylindrical locks as well as cylindrical and deadlatch locks of many other manufacturers.
§The 4211 is compatible with locksets with5⁄8" (15 mm) throwlatchbolts, or up to3⁄4" (19mm) throw latchbolts with a1⁄8" door gap.
§The 4212 is compatible with locksets with1⁄2" (12.7mm) throw latchbolts, or up to 5⁄8" (15 mm) throw latchbolts with a1⁄8" door gap.
