Von Duprin 98 Series Panic Hardware Electric Latch Retraction

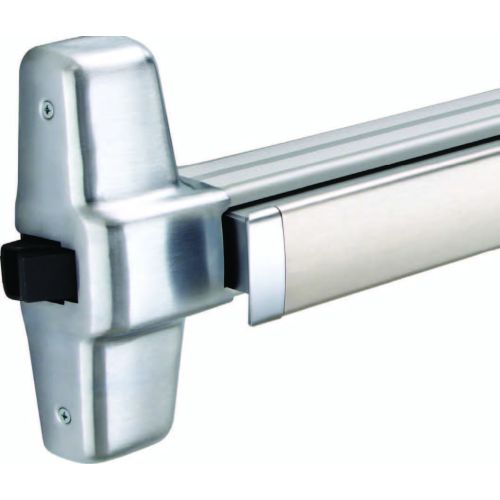

EL98EO-26D-3' - Von Duprin exit devices are available in two external surface styles designated 98 and 99 Series. 98 Series features smooth mechanism case. 99 Series features grooved mechanism case. There are numerous mechanical configurations for these devices, BSASI presents the electrified configurations for Access Control. If your facility has mechanical panic hardware this product will seamlessly convert over to electrified for an excellent Access Control System Conversion while leveraging your existing mechanical hardware currently in place.
Manufacturer Part Number | EL98EO-3-26D |
---|---|
Features | Device Functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device. Device Lengths 3' 2'4' to 3' (711mm to 914 mm) Door Size 4' 2'10" to 4' (864 mm to 1219 mm) Door Size Device Centerline from Finished Floor 39¹C|zn" (1011 mm) 39¹¹|zn" (1008 mm) with Mullion Center Case Dimensions 8" x 2C|₄" x 2C|₈” (203mm x 70mm x 60mm) Mechanism Case Dimensions 2¹|₄" x 2¹|₄" (57mm x 57mm) Projection Pushbar Neutral – 3¹C|zn" (97 mm) Pushbar Depressed – 3¹|zn" (78 mm) Latch Bolt Deadlocking, C|₄" (19mm) throw Fasteners & Sex Bolts (SNB) Includes screw pack for 1¾” (44mm) and 2¼” (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities. Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D available with 98 Series only Electrified Options: LX Latchbolt Monitor Switch RX Pushpad Monitor Switch RX2 Double Pushpad Monitor Switch E Electric Locking & Unlocking Trim EL Electric Latch Retraction QEL Quiet Electric Latch Retraction SS Signal Switch CX Chexit Delayed Exit ALK Alarm Exit Kit WP-RX Waterproof Request to Exit |
Device Functions Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
Device Lengths 3' 2'4' to 3' (711mm to 914 mm) Door Size 4' 2'10" to 4' (864 mm to 1219 mm) Door Size
Device Centerline from Finished Floor 39¹C|zn" (1011 mm) 39¹¹|zn" (1008 mm) with Mullion
Center Case Dimensions 8" x 2C|₄" x 2C|₈” (203mm x 70mm x 60mm)
Mechanism Case Dimensions 2¹|₄" x 2¹|₄" (57mm x 57mm)
Projection Pushbar Neutral – 3¹C|zn" (97 mm) Pushbar Depressed – 3¹|zn" (78 mm)
Latch Bolt Deadlocking, C|₄" (19mm) throw
Fasteners & Sex Bolts (SNB) Includes screw pack for 1¾” (44mm) and 2¼” (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Finishes – US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 & 643E. US15 and US32D available with 98 Series only
Electrified Options:
LX Latchbolt Monitor Switch
RX Pushpad Monitor Switch
RX2 Double Pushpad Monitor Switch
E Electric Locking & Unlocking Trim
EL Electric Latch Retraction
QEL Quiet Electric Latch Retraction
SS Signal Switch
CX Chexit Delayed Exit
ALK Alarm Exit Kit
WP-RX Waterproof Request to Exit
